All of PC funs are waiting for the schedule.

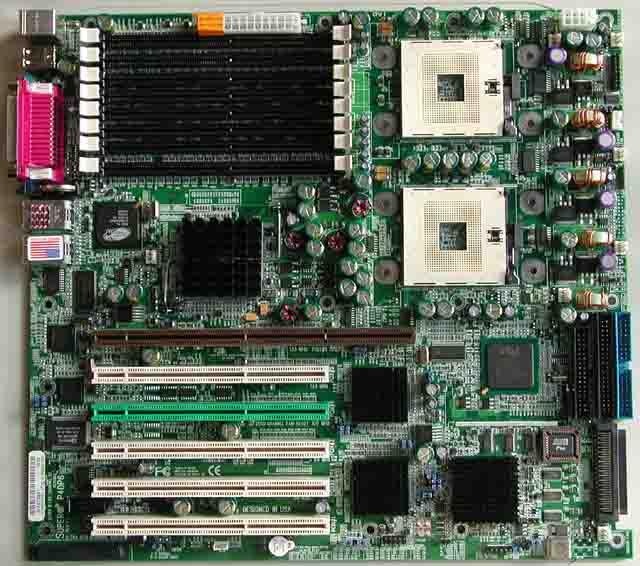

SuperMicro's new dual platform motherboard has been released !
I could do review about SuperMicro's new dual platform motherboard.

Our comments might not be able to test about all of results as preview and aren't enough time to mention.
also the mother board is mass production-sample.
Then this report may be different from the mother board that you get from proper channels.

Nowadays Xeon's system are becoming popular system as becoming cost down.
also these product has no problem. I feel so.
then we can use Xeon's system with peace of mind.

By the way.
usually Xeon's motherboard has RIMM system.
But SuperMicro P4DP6 motherboard has DDR SDRAM system.

DDR SDRAM gives full play to DDR's ability with AMD platform.
So We want to know about Xeon's system's performance.

The seal of 'made in USA' has been pasted.
Made in USA

2，install

Installing hard ware.

２−１、 Memory
P4DP6 has Eight 184-pin DDR DIMM sockets supporting up to 16GB of registered ECC PC1600 DDR SDRAM.
also requires memory modules to be installed two at a time.
PC2100 is supported but only at 200MHz.
Don't mix memory sizes and speeds.

Expansion Slots
Two 64-bit, 133 MHz PCI-X
One 64-bit, 100 MHz PCI-X
Three 64-bit, 66 MHz PCI-X

There is no AGP Slot, then we have to think about that is using for the server.

Other
AIC-7899 for dual channel Ultra160 SCSI、Intel 82550 10/100 fast Ethernet controller( Two Ethernet ports) etc


２−２，
the heat sinks are special heat sink for this motherboard
These can use 'OJI Special Heat sink FAN　Adapter' (^^;

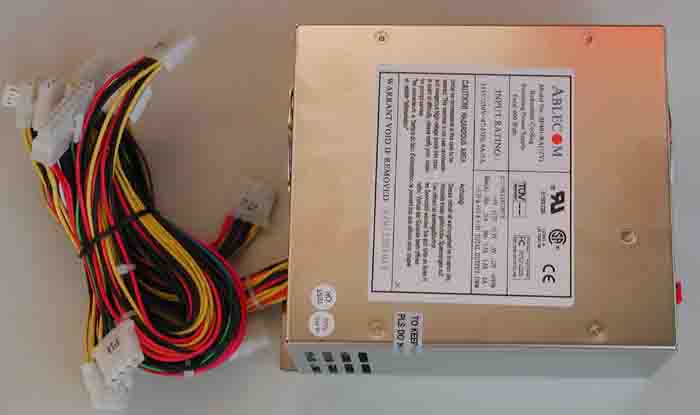

２−３， Power supply
　We could use ＡＢＬＥＣＯＭ　SP401-RA(12V)　


Ｐｏｗｅｒ　ｓｕｐｐｌｙ　ＡＢＬＥＣＯＭ　SP401-RA(12V)　

We could install WindowsXP without big trouble.
But one of system device drivers were not installed..
unknown device

Test1
P4DP6 has no 33MHz PCI slots
We tried to use 33MHz PCI card into this motherboard's PCI slots.
Using IODATA SC-UPCI SCSI card

The results was no problem.

CPU Xeon 1.8GHz *2
Memory Crucial 256MB 266MHz CL2.5 ECC ｒｅｇｉｓｔｅｒｅｄ
HDD SEAGATE ST318406LW (U160 SCSI)

１，　shade 4
13 second　　62 second

reference data （Xeon１７００＊２）'
ＤＸ４００ＳＮ　　Xeon　１７００＊２　　１４秒   ６９秒
Ｐ４ＤＣ６　　　　Xeon　１７００＊２　　１４秒 　７０秒

2,Super Pi 1'37'

3,HDBENCH

http://www.hdbench.net/

 ★ ★ ★  HDBENCH Ver 3.30  (C)EP82改/かず ★ ★ ★
M/B Name   Ｐ４ＤＰ６
Processor   Pentium4 1799.26MHz[GenuineIntel family F model 2 step 4]
VideoCard   ATI Technologies, Inc. RAGE XL PCI
Resolution  1024x768 (16Bit color)
Memory      523,244 KByte
OS           5.1 (Build: 2600)
Date        2002/02/23  06:32

標準デュアル チャネル PCI IDE コントローラ
プライマリ IDE チャネル
  TEAC CD-540E

標準デュアル チャネル PCI IDE コントローラ
セカンダリ IDE チャネル

Adaptec AIC-7899 Ultra160 PCI SCSI Card
  SEAGATE ST318406LW      0109

Adaptec AIC-7899 Ultra160 PCI SCSI Card

   ALL  Integer   Float  MemoryR MemoryW MemoryRW  DirectDraw
 43687   108637  132337   131276   47699    94653          19

Rectangle   Text Ellipse  BitBlt    Read   Write    Copy  Drive
     8520   8664    4167      86   50368   42541    4005  C:\100MB


3,gogo-no-coda Bench mark

http://ww1.tiki.ne.jp/~hino/index.html
http://homepage1.nifty.com/herumi/gogo_bench.html

--- GogoWinBench 1.23 [2002/02/23 2:01:19] ---
[OS] Windows XP (5.1.2600)
[CPU] Intel Pentium 4 (Northwood) * 4 / 1797.0MHz (399.3 * 4.5)
 GenuineIntel
 Intel(R) XEON(TM) CPU 1.80GHz
 0/0/0/15/2/4
 FPU TSC MSR CMOV MMX MMXE SSE SSE2
 L1TraceCache 12Kuop, 8Way
 L1DataCache  8KB, 4Way, 25476.16MB/s, 2clk
 L2Cache      512KB, 8Way, 13496.47MB/s, 18clk
 Memory       512MB, 1939.36MB/s, 297clk
[DLL] GOGO DLL ver. 2.36  (Aug  7 2000)

[使用機能] MMX SSE CPU[4]
[音響解析] なし
[測定結果] 再生の 201.95倍速 (計測時間 4.99秒)

[使用機能] MMX SSE CPU[4]
[音響解析] あり
[測定結果] 再生の 55.36倍速 (計測時間 5.00秒)
